Zintra Acoustic 3D Walls

Zintra 3D wall panels join seamlessly to add depth, interest and superior acoustics to flat or curved surfaces.  The narrow panels have been designed with a small pattern repeat so they're easy to adjust, and fit wall to wall without the need for custom drawings.

3D WALLS SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING   aw 0.30 / NRC 0.45
  ​

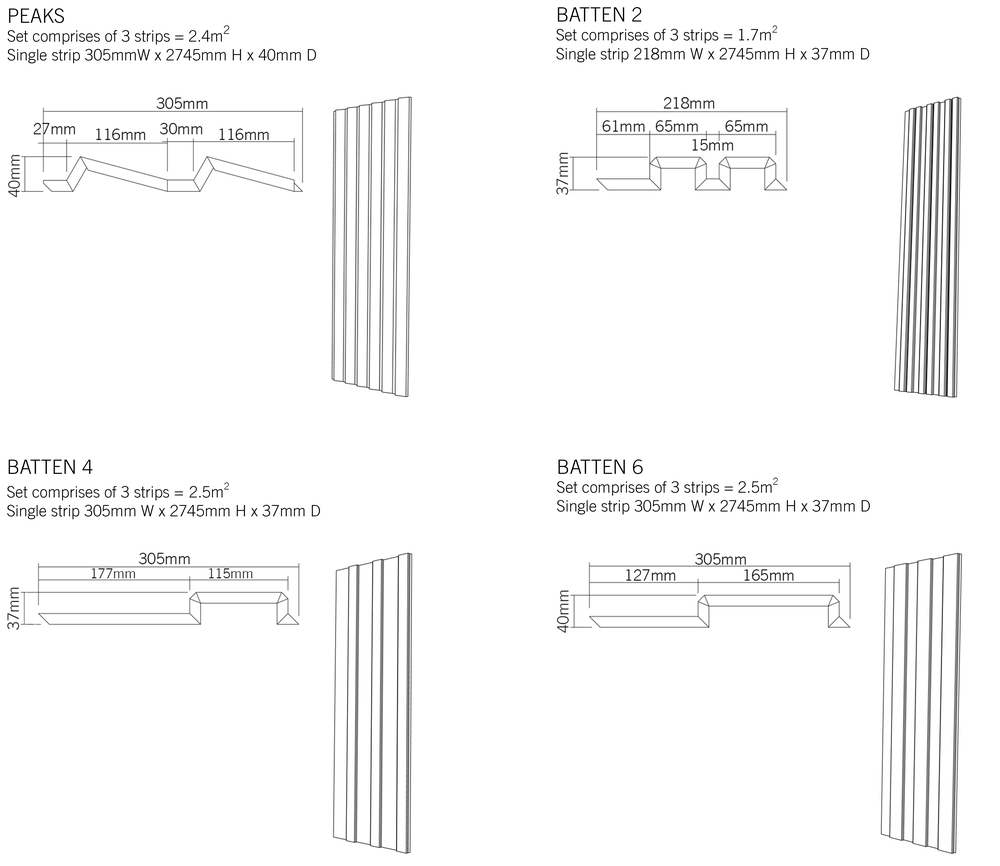

• DIMENSIONS   See diagrams above.
• Peaks : 2745mm h  x 915mm w x 40mm d
• Batten 2 : 2745mm h x 654mm w x 37mm d
• Batten 4 : 2745mm h x 915mm w x 37mm d
• Batten 6 : 2745mm h x 915mm w x 40mm d

• ​SURFACE FINISH   Matte

• WEIGHT   2.4kg / m2

• FIRE RATING   Euroclass B-s2-d0

• COLOURS  30 standard plain colours and 4 timber effects. Digitally printed solid colours available too.

• APPLICATION   Indoor areas only.

• INSTALLATION   Refer to install guide for screw locations and spacing (screws not suppiled). Screw into wall through indicated joins using suitable screws for substrate. push panel to protrude texture and screw into place. Repeat in a tile-like fashion across the space.

• ADDITIONAL COMMENTS   Not suitable as a freestanding product.  Flat packed

• CUSTOMISATION  Zintra 3D walls can be customised.

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.
