Zintra Acoustic Patterns

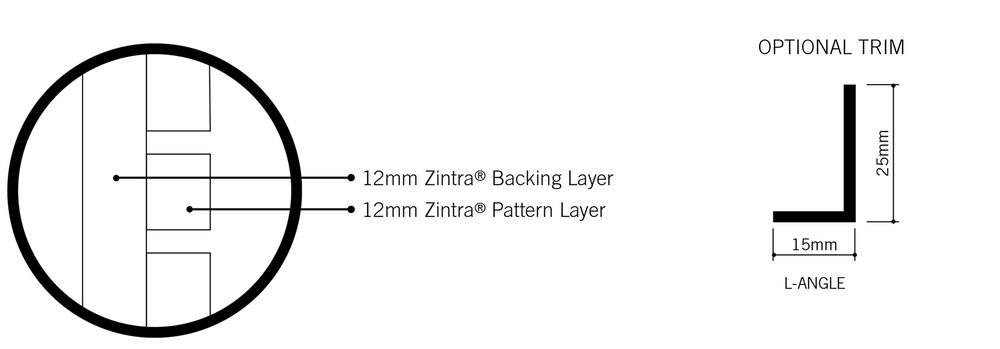

Zintra Patterns offer a broad range of classic or contemorary panel designs that can be used on their own, or combined with a second 12mm panel as a backer - in same or different colour - creating dimensional acoustic screens and coverings for walls.

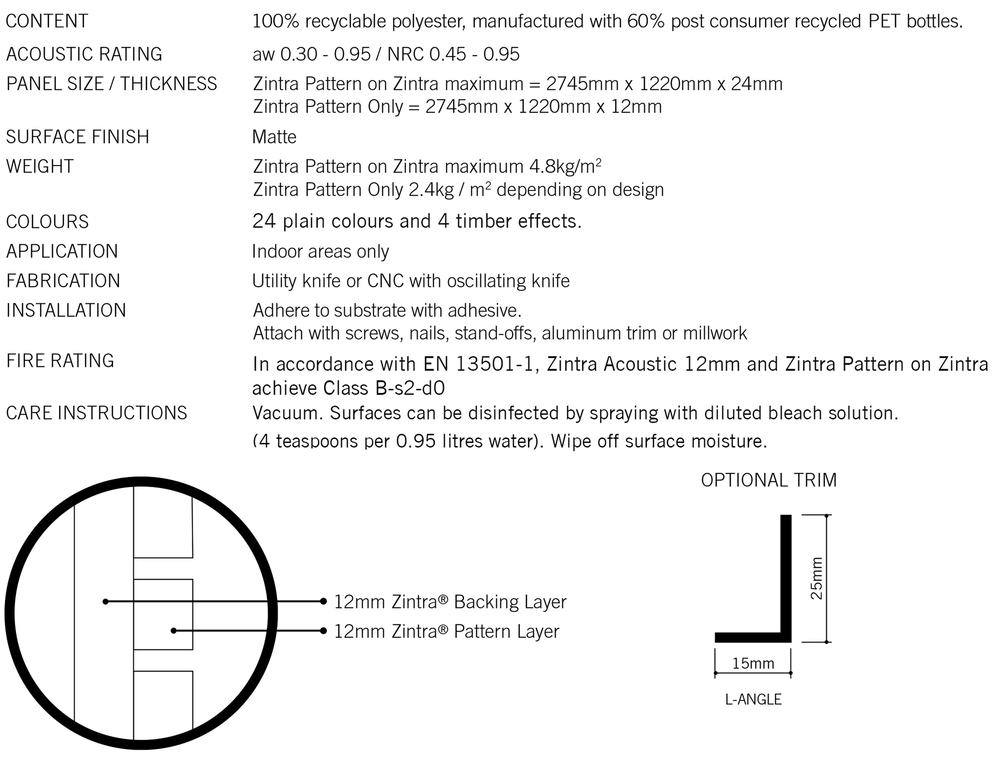

ACOUSTIC PATTERNS SPECIFICATION
- CONTENT 100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.
- ACOUSTIC RATING
Single layer : aw 0.30 to 0.95 depending on air gap / NRC 0.45 to 0.95 depending on air gap.
Double layer : aw0.60 to 0.95 depending on air gap / NRC 0.75 to 100 depending on air gap.
- PANEL SIZE / THICKNESS
Single layer 2745mm x 1220mm / thickness 12mm
Double layer 2745mm x 1220mm / thickness 24mm
- SURFACE FINISH Matte
- WEIGHT Single layer 2.4kg / m2 / Double layer 4.8kg/ m2
- FIRE RATING Euroclass B-s2-d0
- COLOURS 30 standard plain colours and 4 timber effects.
- APPLICATION Indoor areas only.
- FABRICATION Utility knife or CNC with oscillating knife.
- INSTALLATION As a single layer room divider : Choose one of Tektura's hardware options or your own to install. As a double layer : Adhere to substrate with Silicon based construction adhesive. Panel can be mechanically fixed using details similar to glass fittings.
- CARE Vacuum. Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water). Wipe off surface moisture.
- ADDITIONAL COMMENTS Not suitable as a free standing product. If used as a sliding screen (single layer), please check suitability of chosen design with Tektura.
PATTERNS
