Zintra Acoustic Sticks NEW

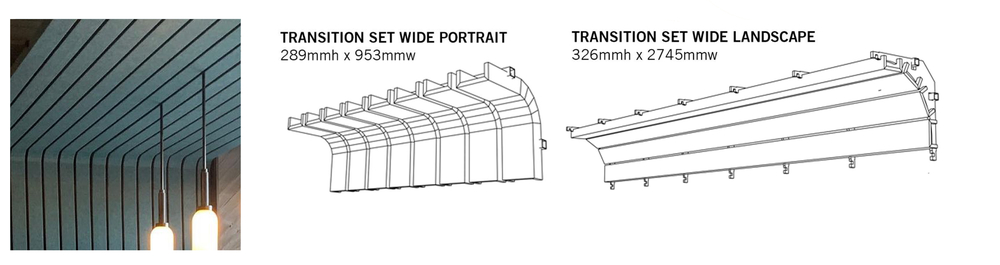

Zintra® Sticks is a range of fabricated acoustic sticks supplied ready to install as a complete system or as individual lengths.  Available in 2745mm lengths, the range includes two stick widths for installation to walls or ceilings.  Sticks can be installed horizontally or vertically, with purpose-made ceiling to wall transition pieces.  A Suspension Kit for ceilings and individual sticks is also available.   Sticks Trim is supplied as a separate right angle piece, easily cut on site to mitre or butt join.

ACOUSTIC STICKS SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING   aw 0.60 to 0.65 depending on air gap / NRC 0.80 to 0.95 depending on air gap

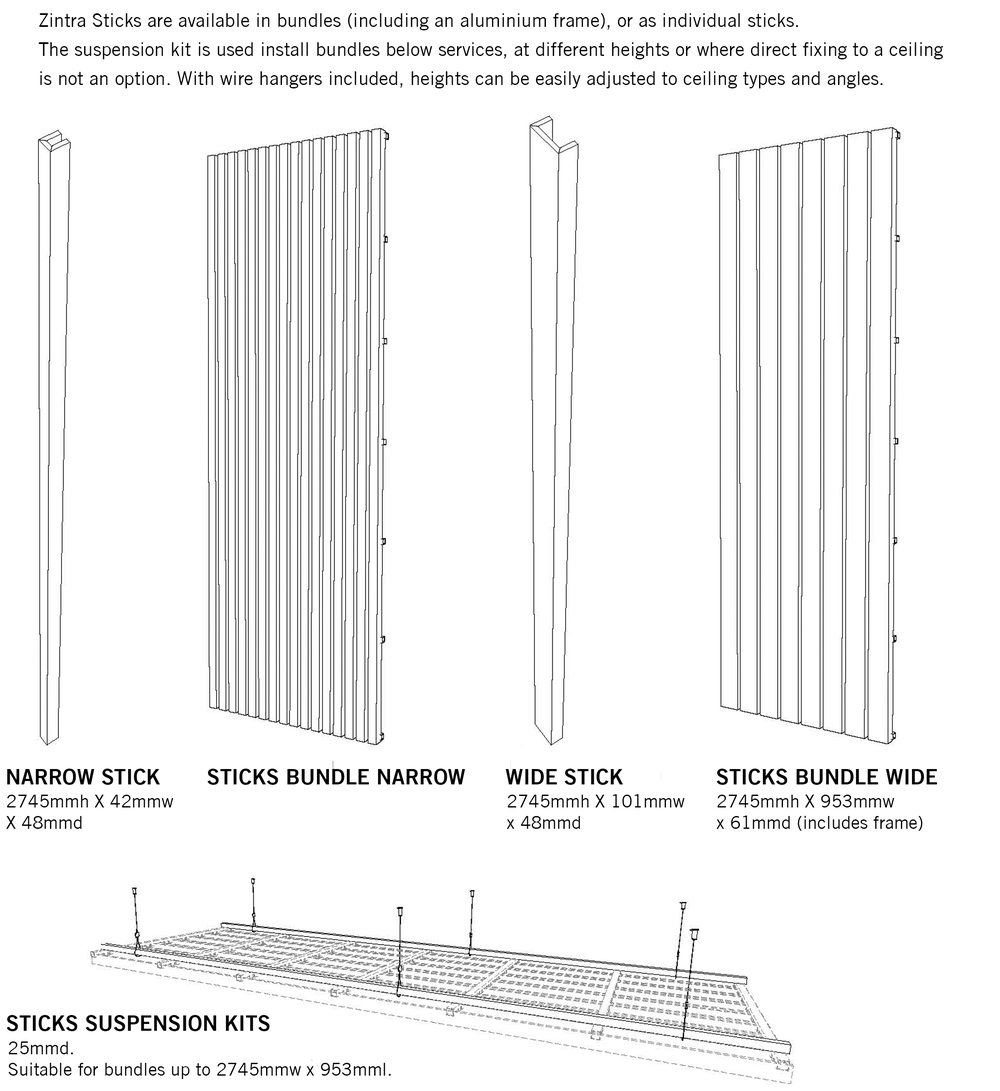

• STICK SIZE / THICKNESS   See diagrams. All sticks fabricated with 12mm thick Zintra.

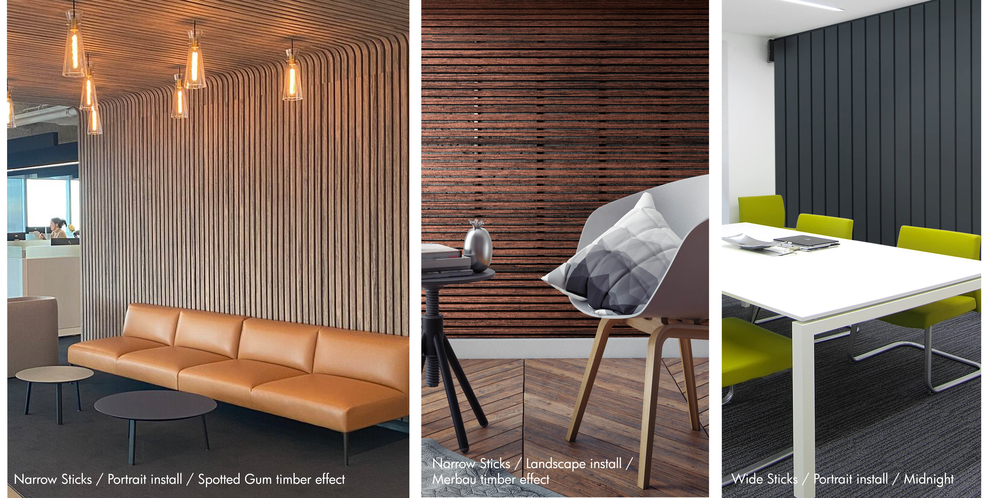

  Width of stick : either narrow 42mm or wide 101mm.
  Depth of stick :  48mm or 61mm supplied in bundles with aluminium frame.
  Length of stick :  Maximum stick length 2745mm.

• ​SURFACE FINISH   Matte

• WEIGHT   2.4kg / m2

• FIRE RATING   Euroclass B-s2-d0

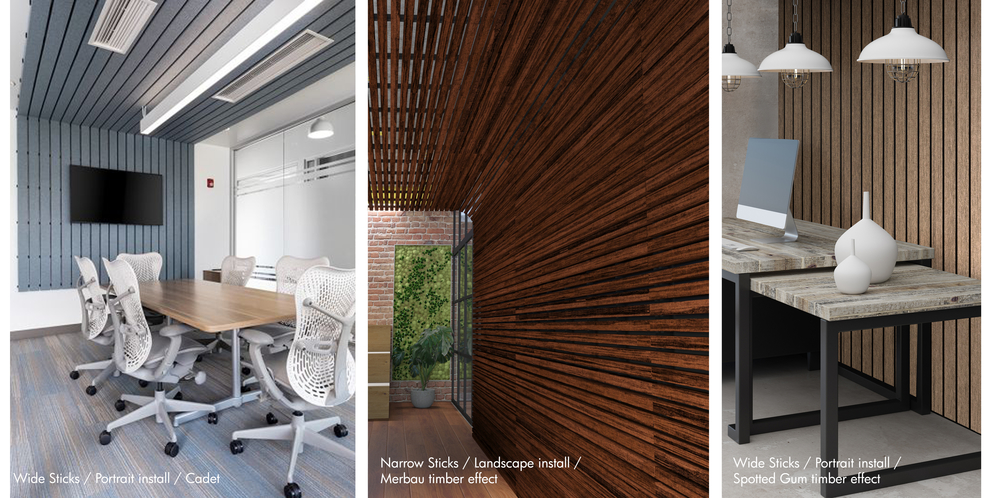

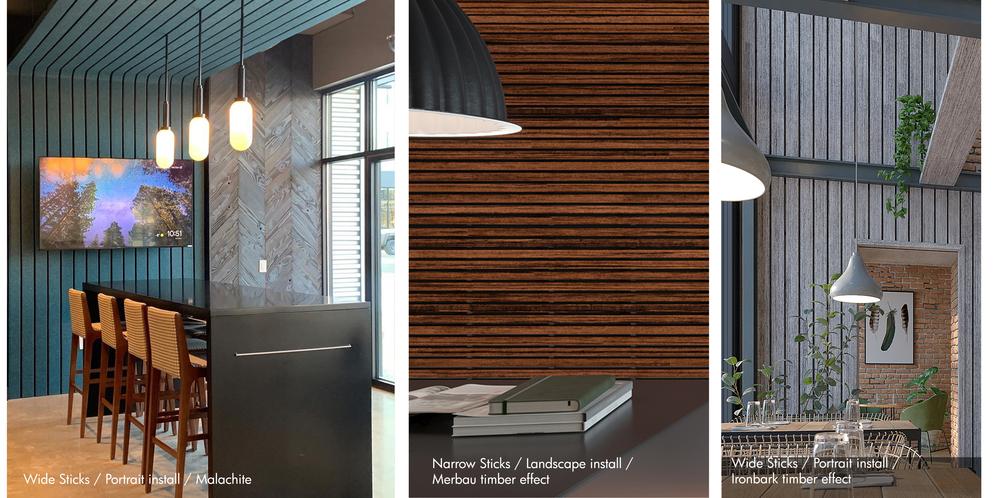

• COLOURS  30 standard plain colours and 4 timber effects. Digitally printed colours available too.

• APPLICATION   Indoor areas only.

• FABRICATION   Utility knife or CNC with oscillating knife.

• INSTALLATION   Shipped flat packed, except Sticks Trim.  Assembly required. Contact Tektura for full instructions.

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.
