Zintra Acoustic Desk Solutions

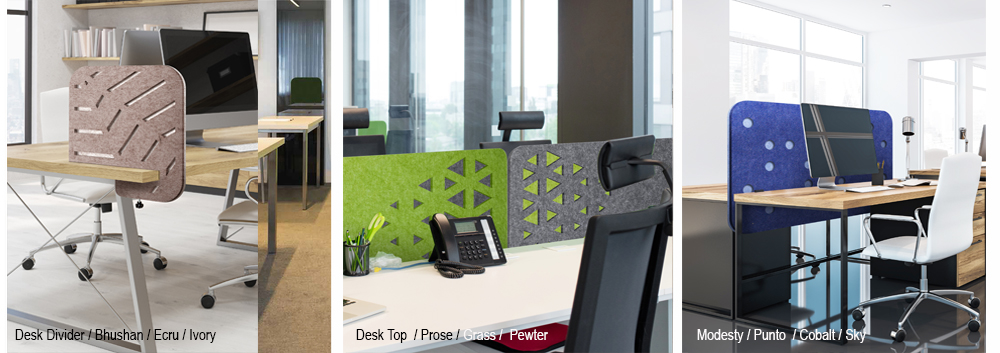

DESK DIVIDERS  /  DESK SCREENS & HOODS  /  MODESTY PANELS /  WRAP SCREENS / CORNER UNITS

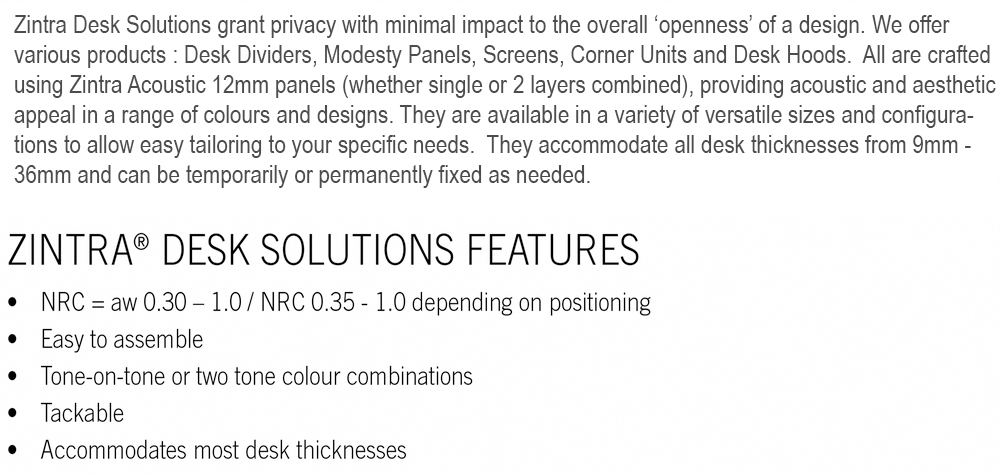

Zintra Desk Solutions grant privacy with minimal impact to the overall 'openness' of a space.  All are made using 12mm panels (whether 1 or 2 layers combined). Available in a variety of designs - these desk screens can accommodate desk thicknesses from 9mm through to 36mm, and can be temporarily or permanently installed as needed.

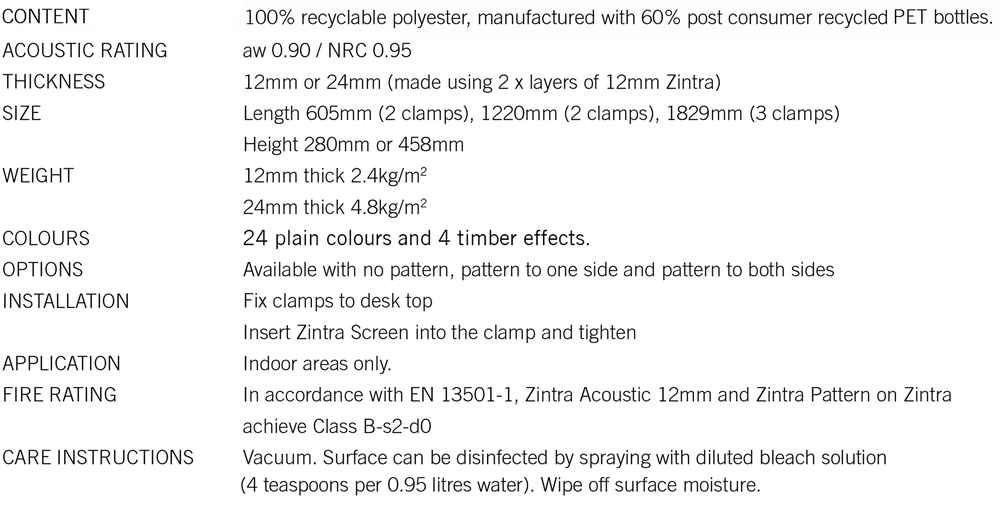

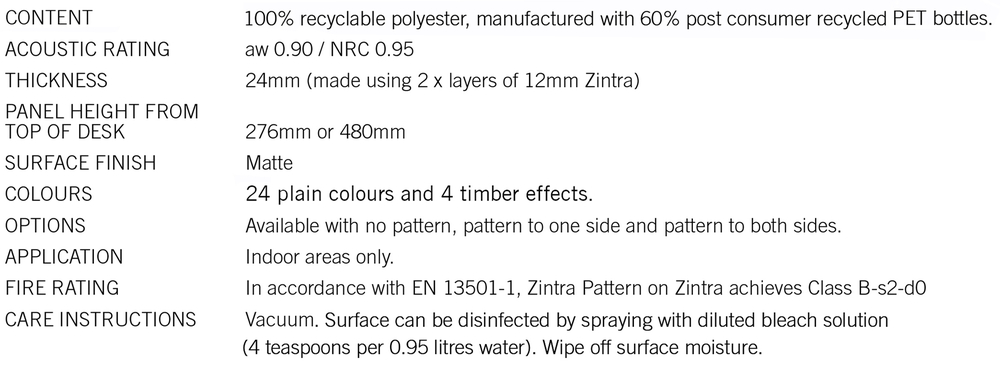

ZINTRA DESK SOLUTIONS GENERAL SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING   Aw 0.95 to 1.00 depending on air gap / NRC 0.95 to 1.00

• PANEL SIZE / THICKNESS   Refer to products for more information.

• ​SURFACE FINISH   Matte

• WEIGHT   Single layer Zintra : 2.48kg / m2.  Double layer Zintra : 4.8kg/m2.

• FIRE RATING   Euroclass B-s2-d0

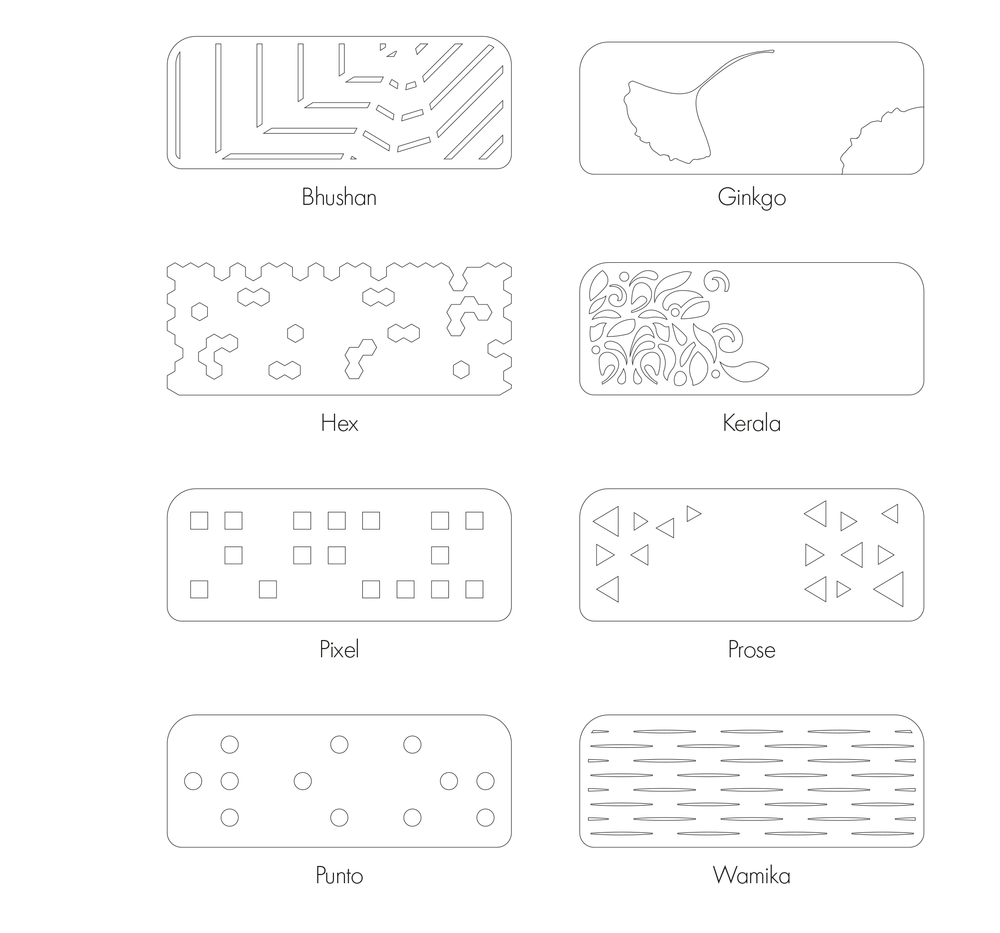

• COLOURS  30 standard plain colours and 4 timber effects. Digitally printed colours available too.

• APPLICATION   Indoor areas only.

• FABRICATION   Utility knife or CNC with oscillating knife.

• INSTALLATION   Ready assembled.  Refer to individual products for more info.

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.

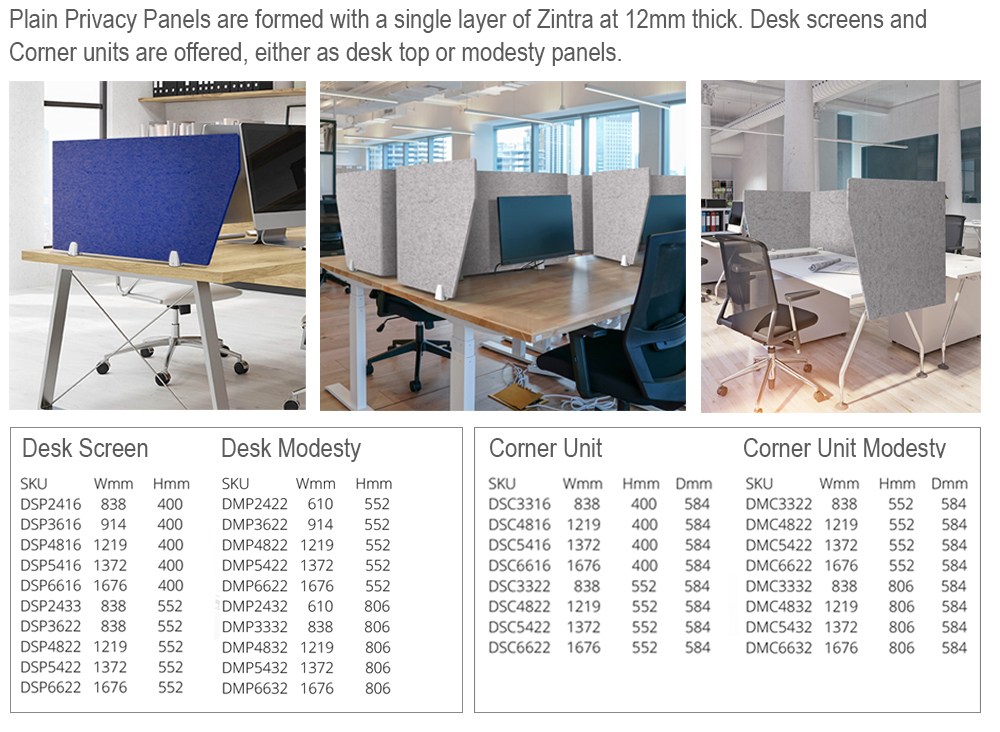

PLAIN PRIVACY PANELS

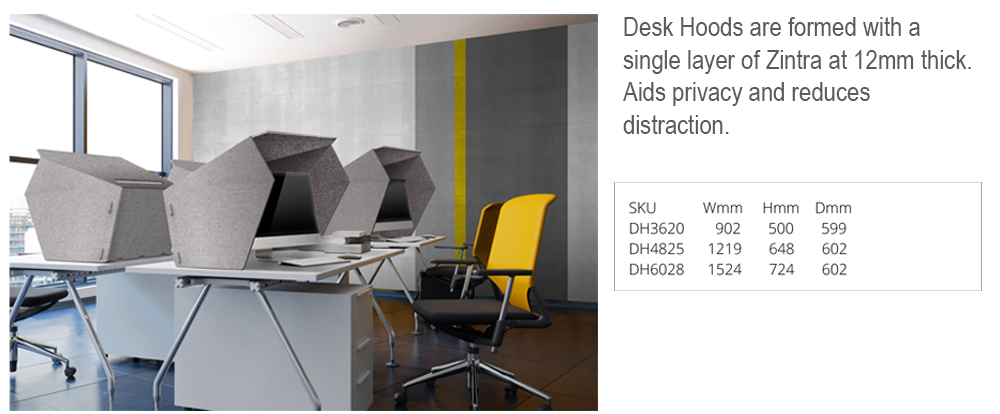

DESK HOODS

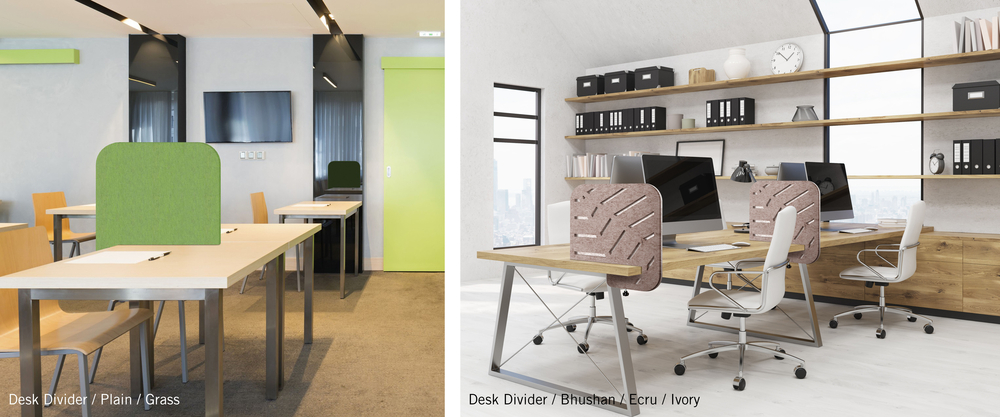

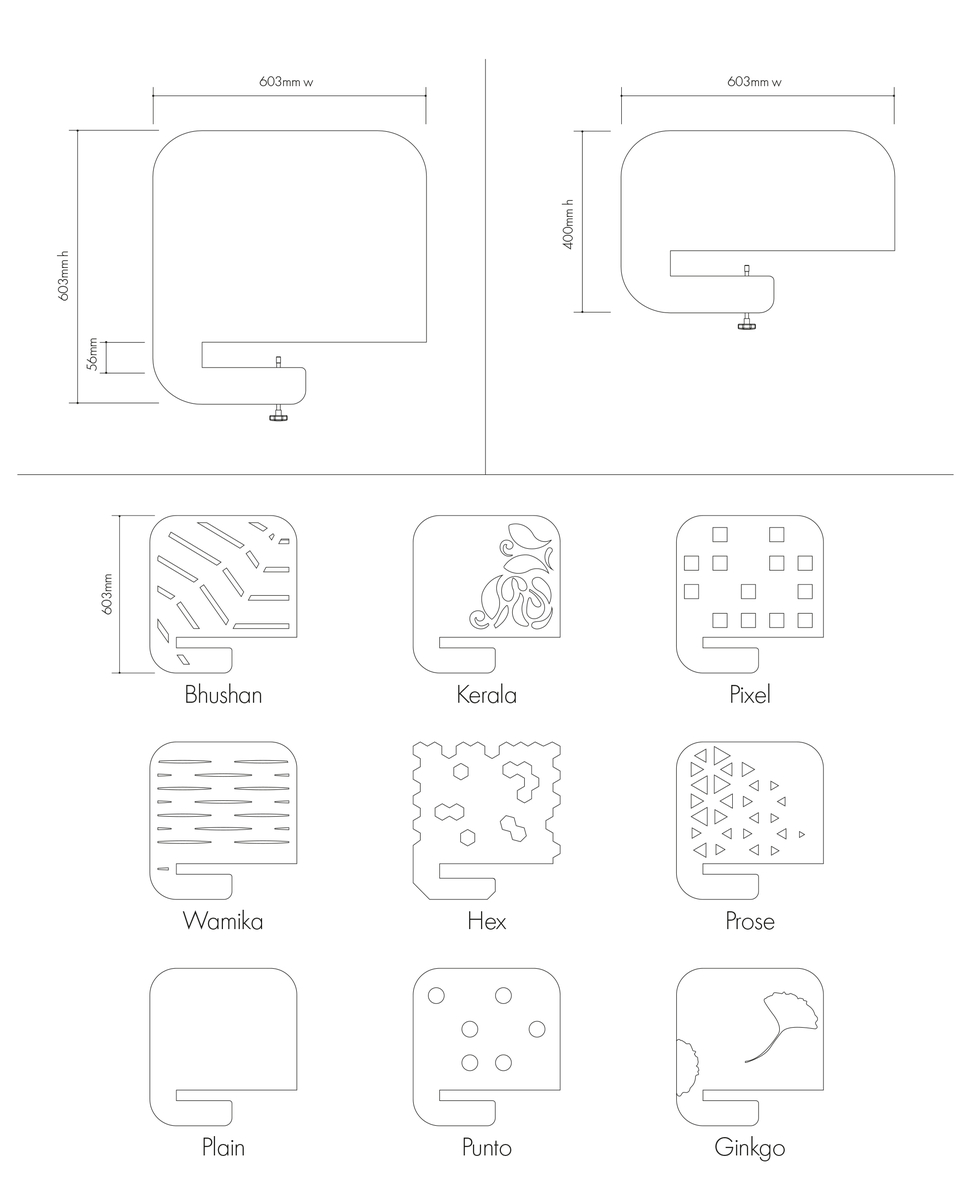

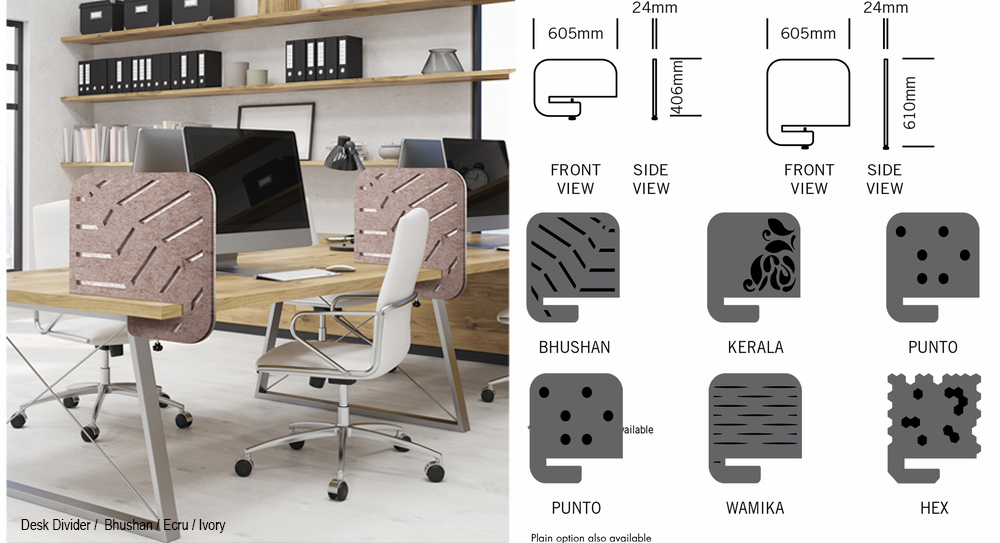

DESK DIVIDERS

• SIZE  603mm x 400mm x 24mm / 603mm x 603mm x 24mm

• PANEL HEIGHT FROM TOP OF DESK   276mm or 480mm

• INSTALLATION   Slide the desk divider over the edge of the work surface and tighten knob. Hardware included.

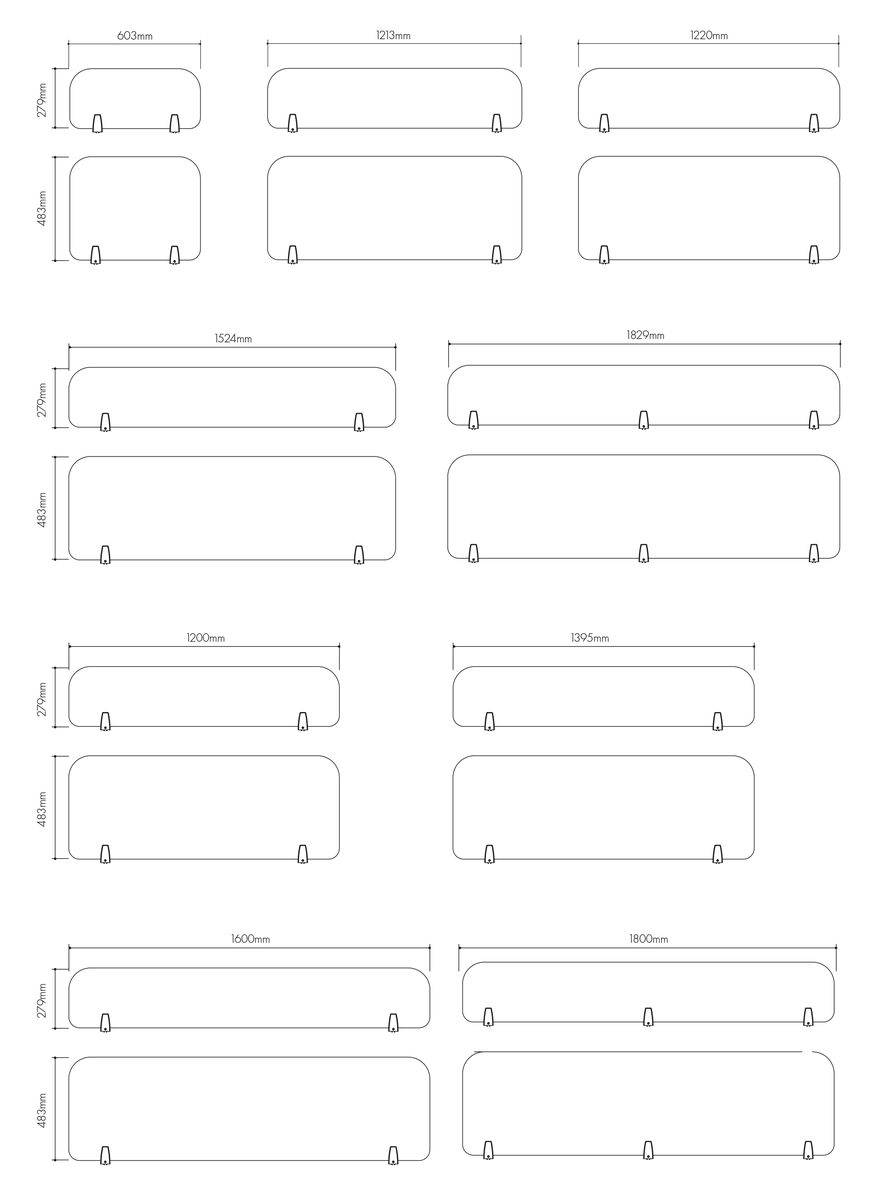

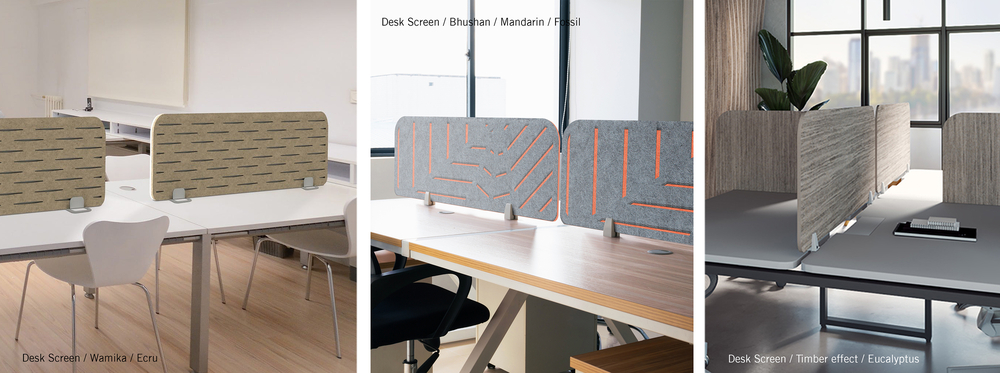

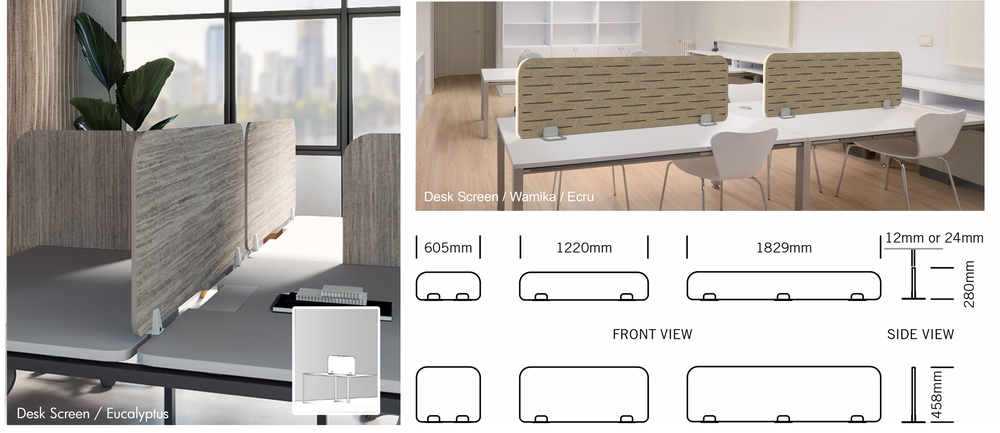

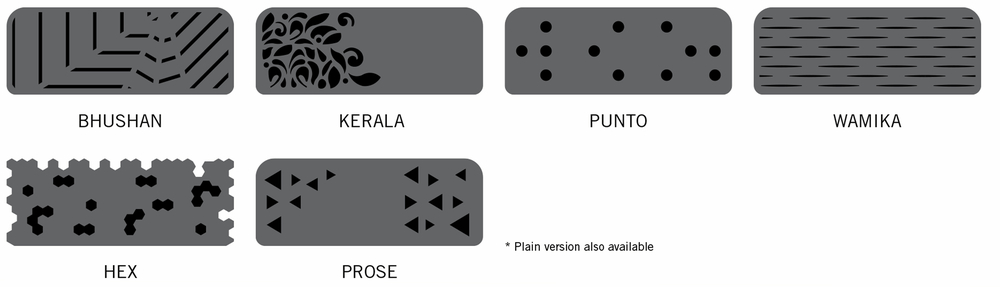

DESK SCREENS

• SIZE   Length 603mm / 1220mm / 1213mm / 1395mm / 1524mm / 1600mm / 1800mm / 1829mm

• HEIGHT   279mm or 483mm

• INSTALLATION   Fix Clamshell to desk top. Insert Zintra screen into the clamp and tighten.  Hardware included.

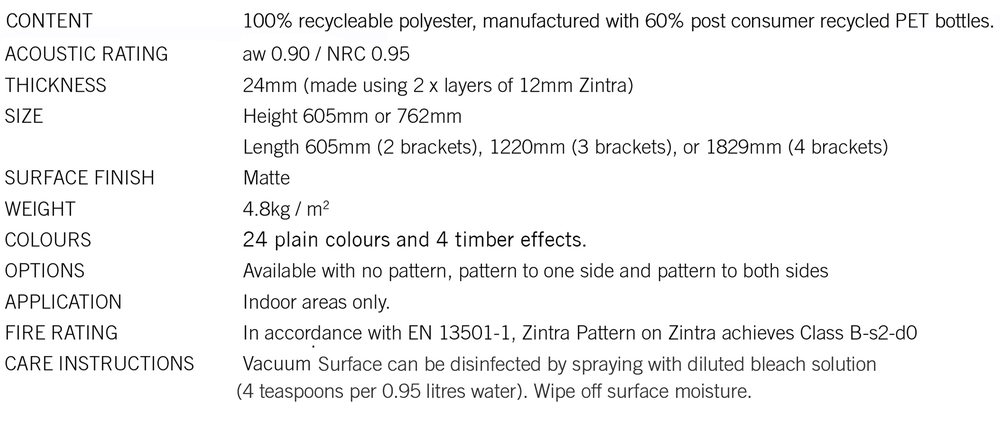

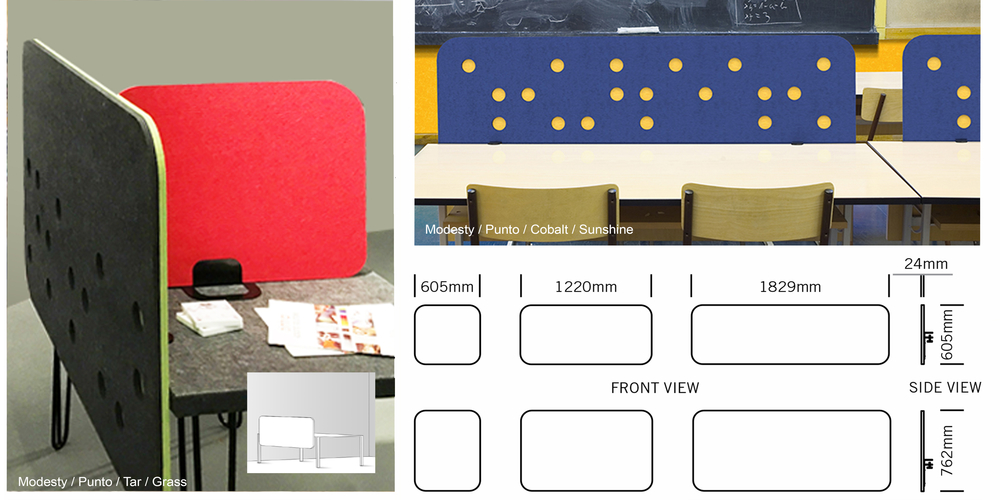

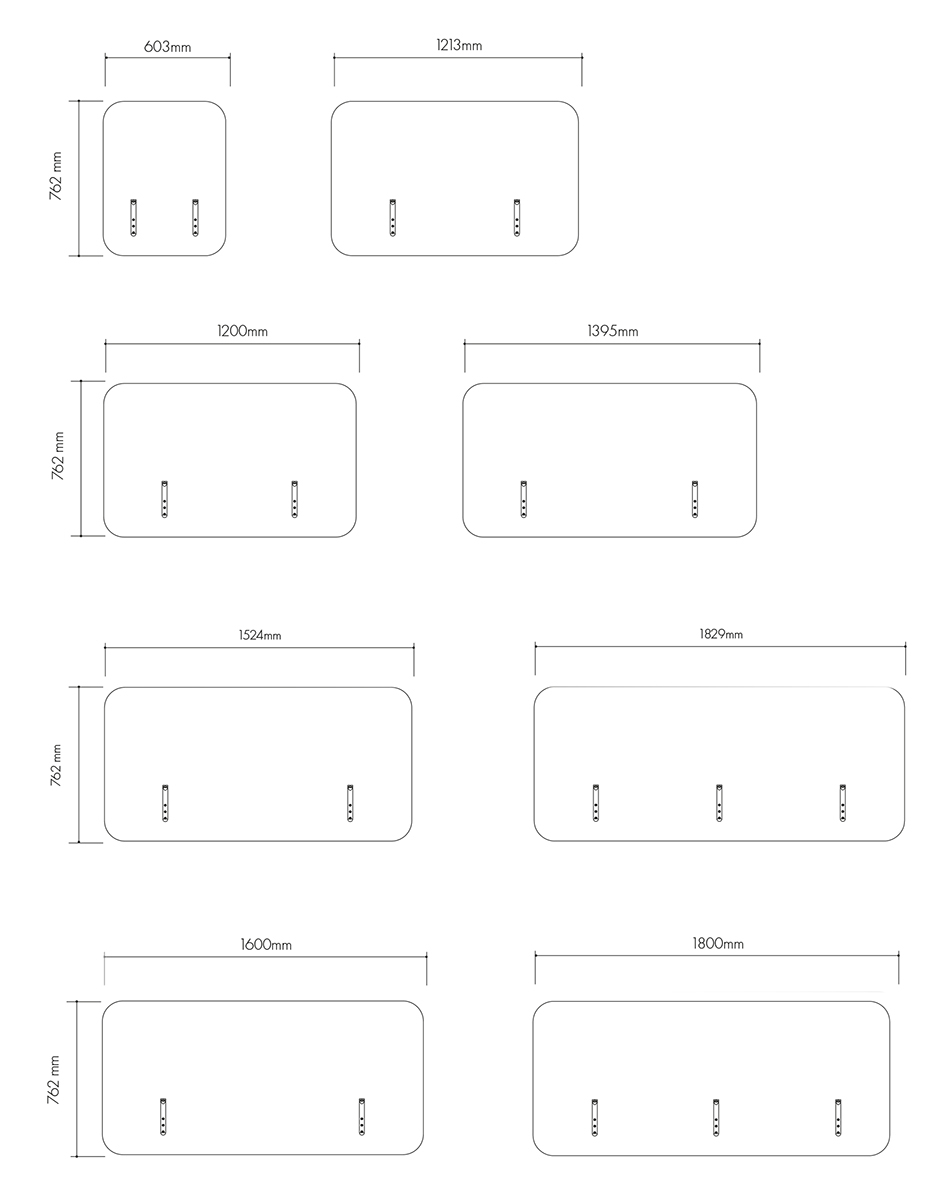

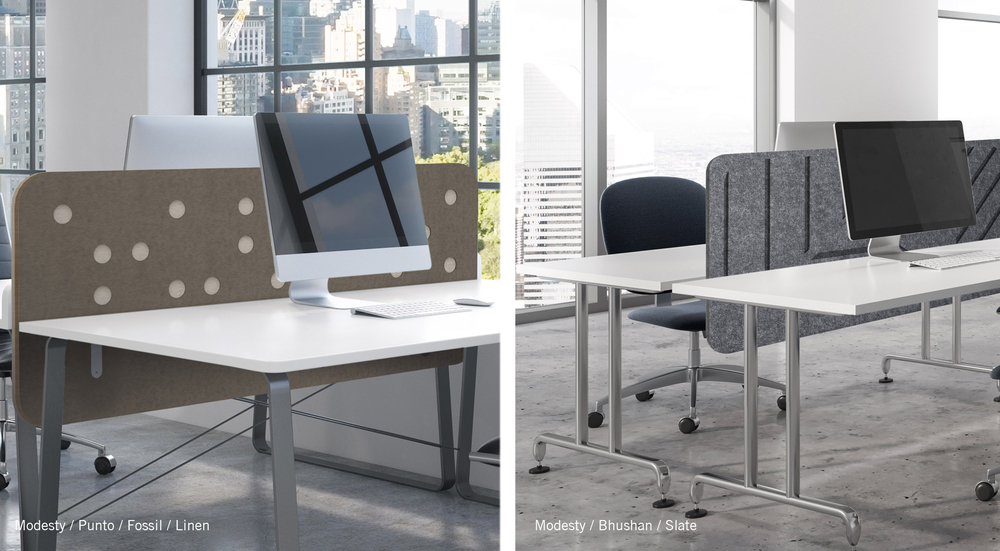

MODESTY PANELS

• SIZE   Length 603mm /  1200mm / 1213mm / 1395mm / 1524mm / 1829mm

• HEIGHT   603mm or 762mm

• INSTALLATION   Fit the L-brackets to the desk and attach screen.

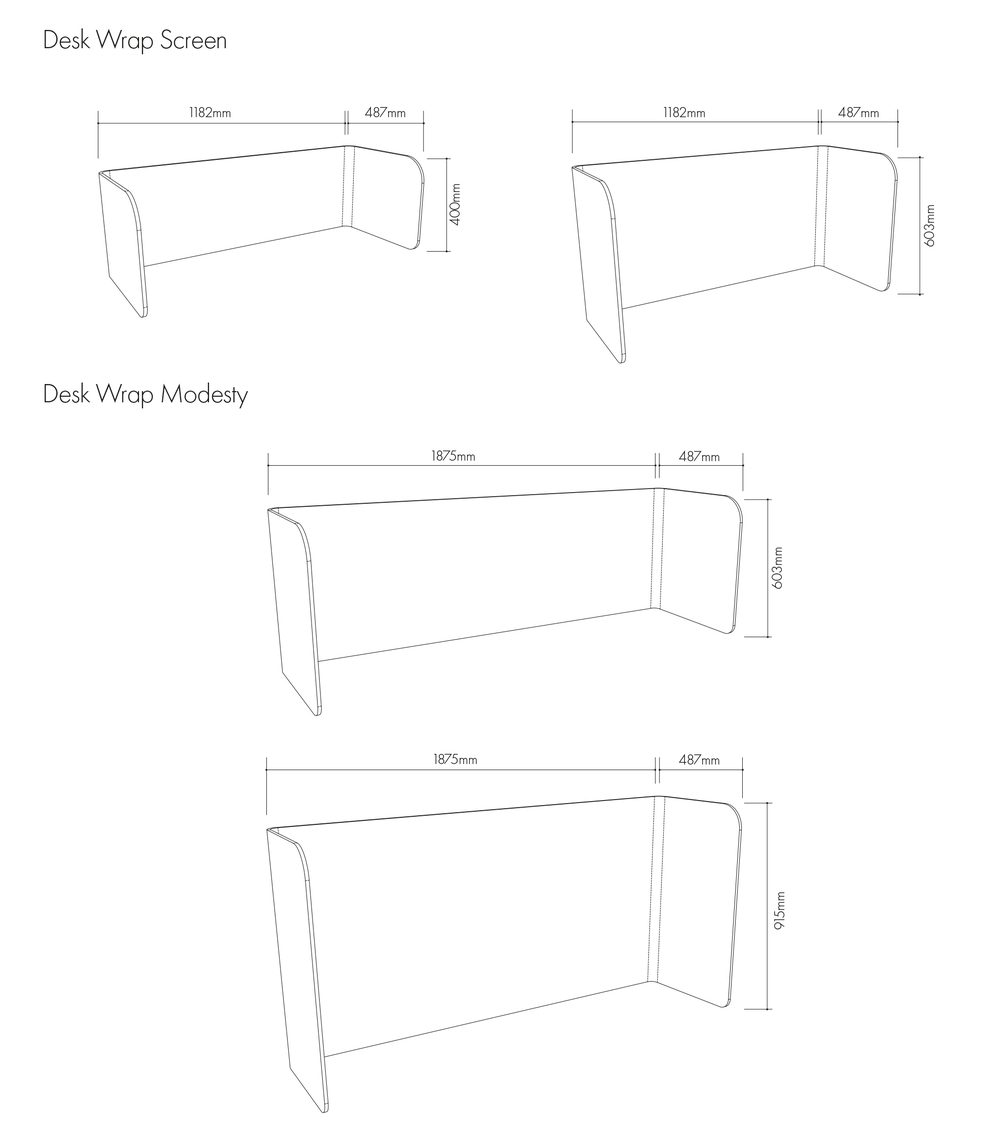

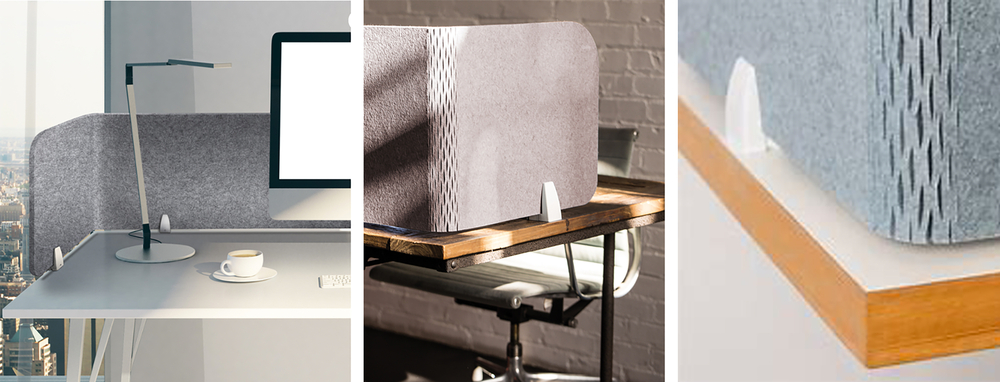

DESK WRAP SCREEN

• SIZE   :  Only available in 12mm thickness
• Screen height   (400mm or 603mm) to suit desk widths of 1200mm / 1400mm / 1600mm / 1800mm
• Modesty height   (603mm or 915mm) to suit desk widths of 1200mm / 1400mm / 1600mm / 1800mm
• Screen / Modesty depth   is always 487mm deep

• INSTALLATION   Fix Clamshell or L-brackets to desk. Connect Wrap to fixing.

  ---
