Zintra Acoustic Textures

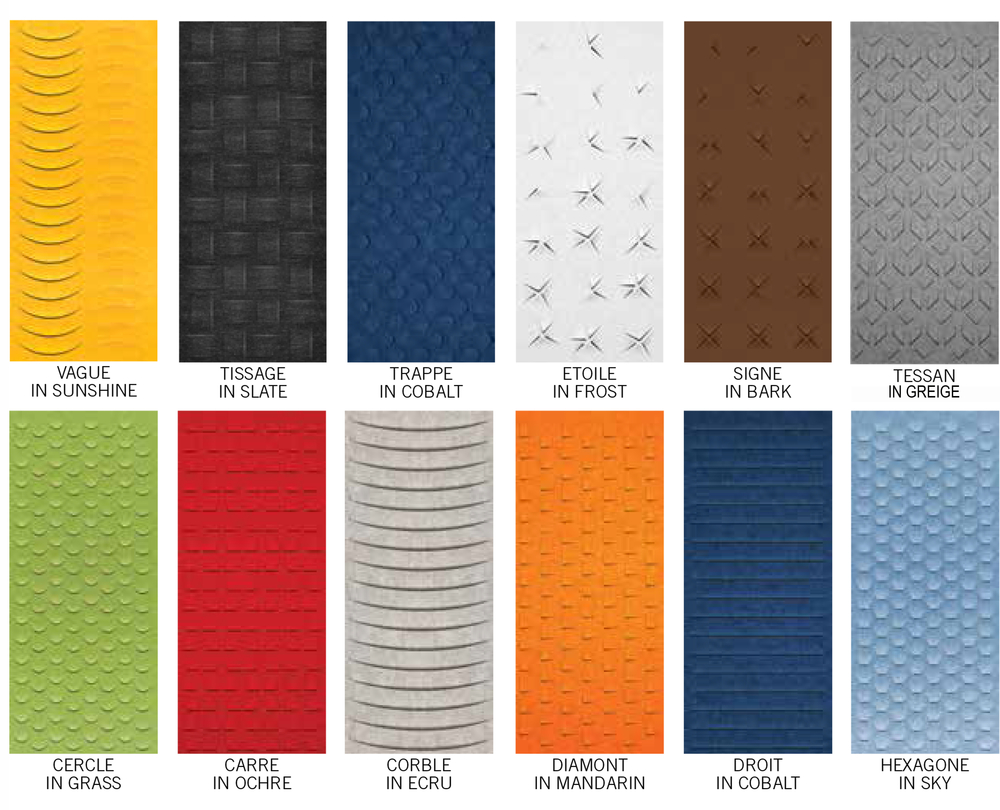

Zintra Textures offer subtle and engaging 3-dimensional panel designs. Each design incorporates aspects that reduce echo by changing the angle of sound reflecting off the surface. This makes them ideal for noisy public spaces that need a little flair.

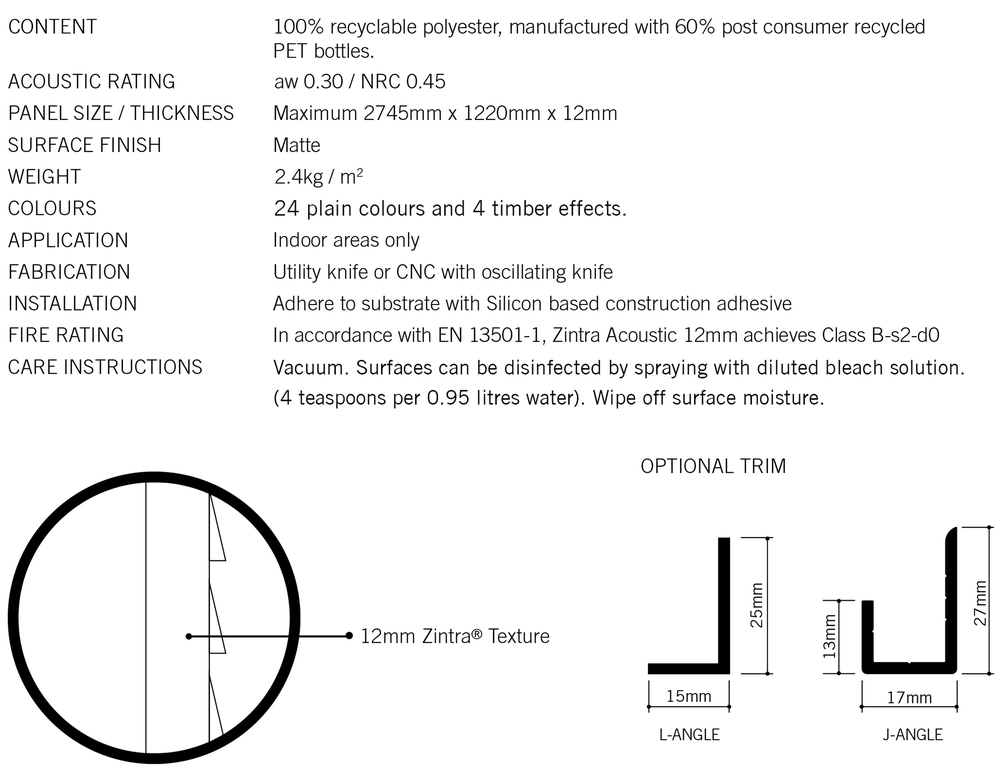

ACOUSTIC TEXTURES SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING   aw 0.30 to 0.95 depending on air gap / NRC 0.45 to 0.95 depending on air gap.

• PANEL SIZE / THICKNESS   2745mm x 1220 / thickness 24mm

• ​SURFACE FINISH   Matte

• WEIGHT   2.4kg / m2

• FIRE RATING   Euroclass B-s2-d0

• COLOURS  30 standard plain colours and 4 timber effects. (NB Timber effects are digitally printed onto a plain Zintra base colour. Once the texture panel is installed, the plain base colour will be visible on each exposed side of the textured shape).

• APPLICATION   Indoor areas only.

• FABRICATION   Utility knife or CNC with oscillating knife.

• INSTALLATION   Zintra Textures should be installed using GripFill SF or Pink Grip SF adhesive (not supplied).

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.

• ADDITIONAL COMMENTS  Zintra Textures are not suitable as a free standing product.

•
