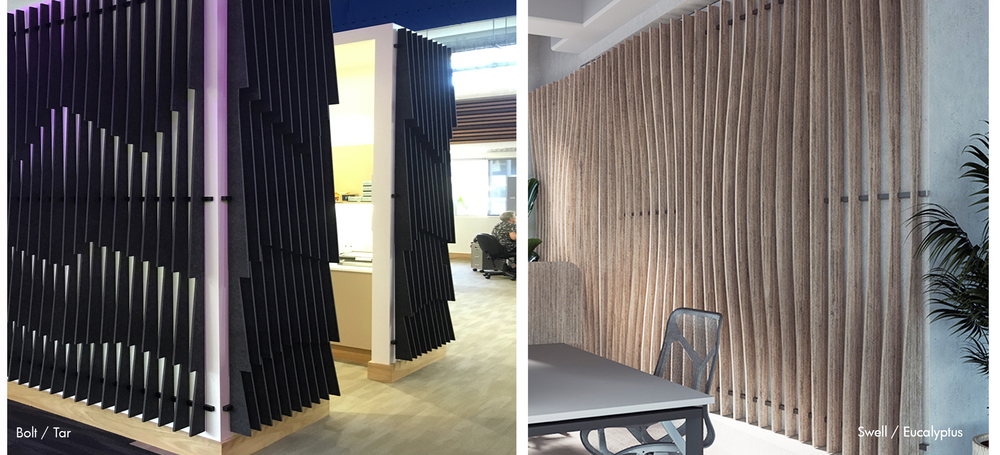

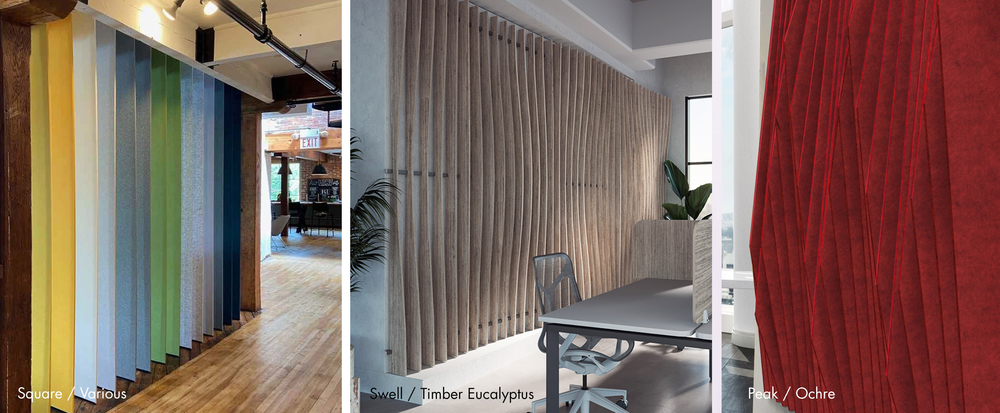

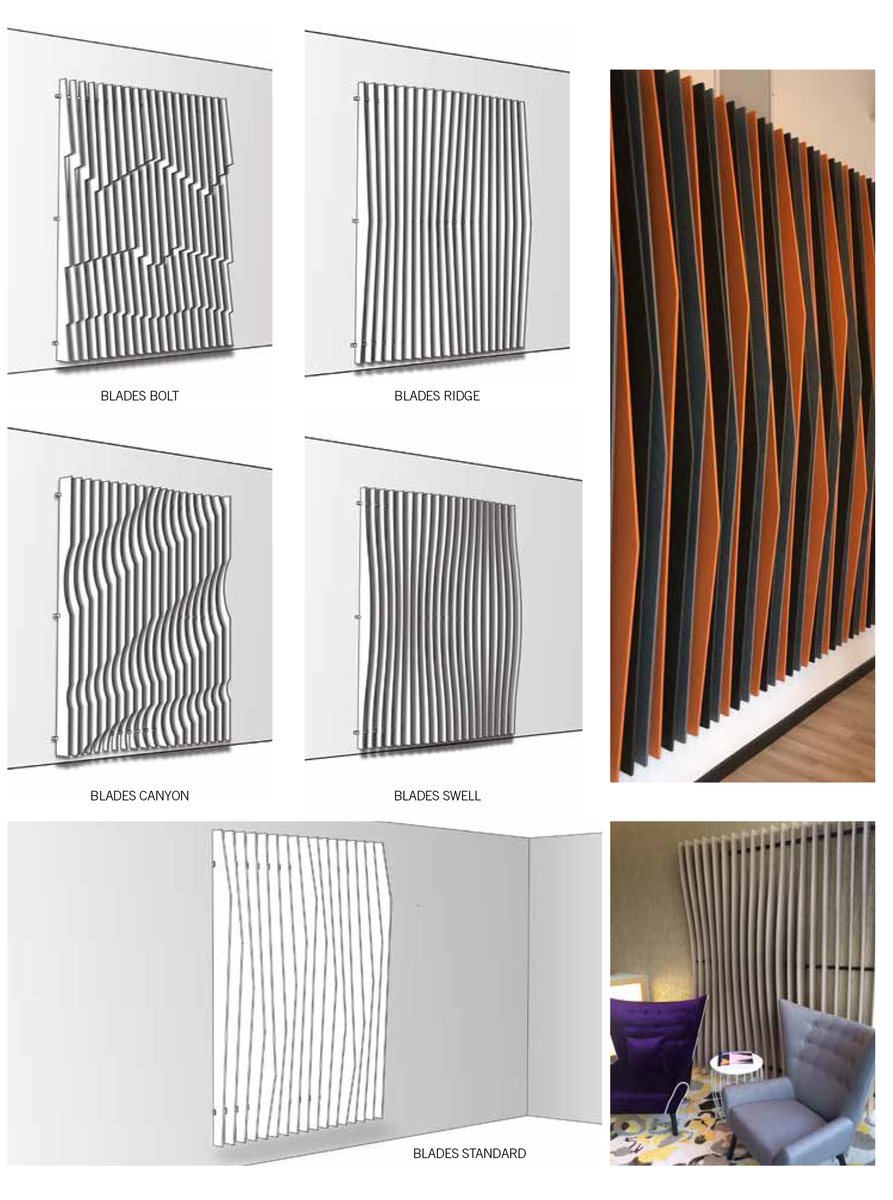

Zintra Acoustic Blades

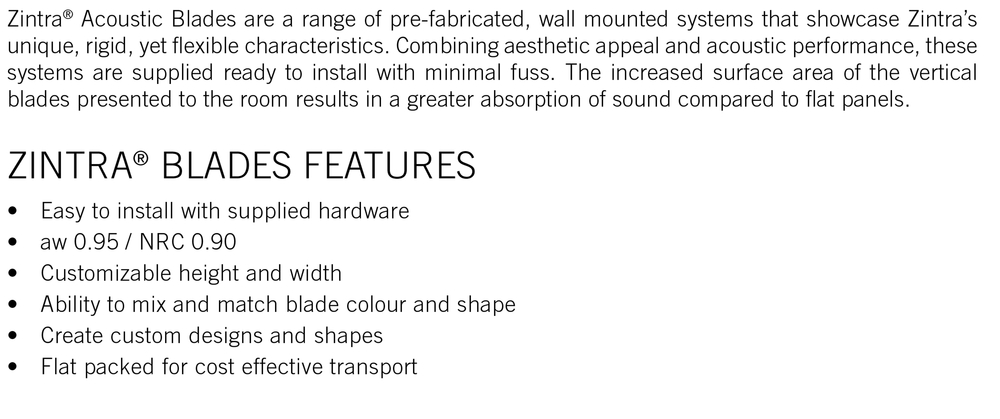

Zintra Blades are prefabricated, wall mounted baffles supplied ready for easy installation.  Blades provide an interesting alternative to wall panels, with their double-sided presentation increasing the surface area for noise absorption and enabling light to flow into a space.

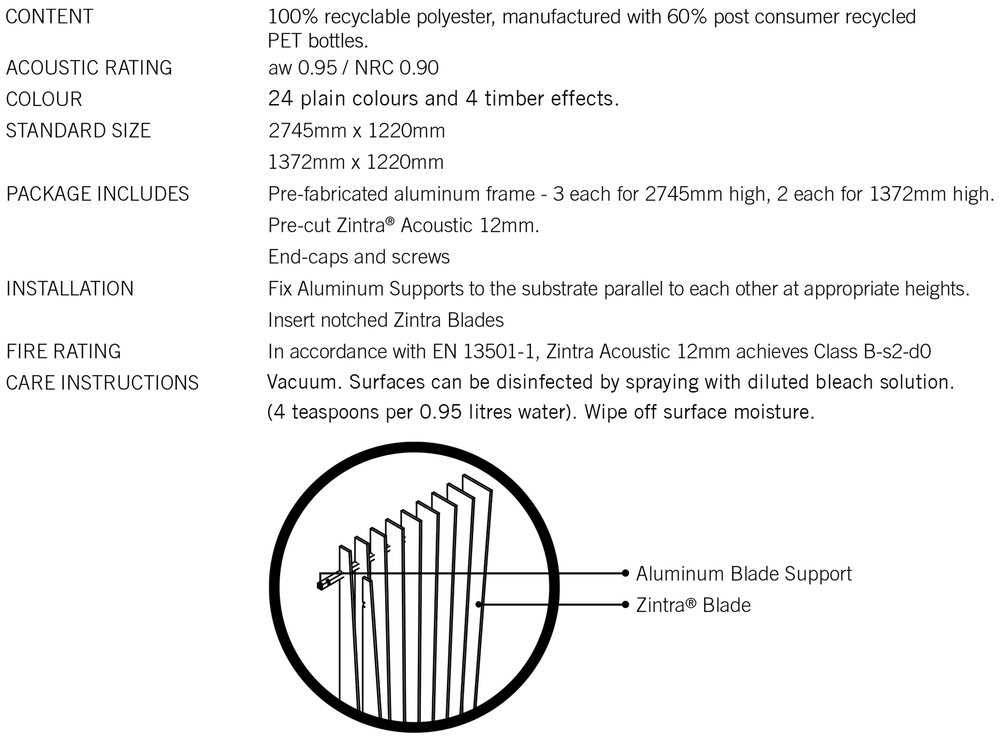

ACOUSTIC BLADES SPECIFICATION

• CONTENT   100% recyclable polyester, manufactured with 60% post consumer recycled PET bottles.

• ACOUSTIC RATING    Directly mounted : Aw 0.65 / NRC 0.65

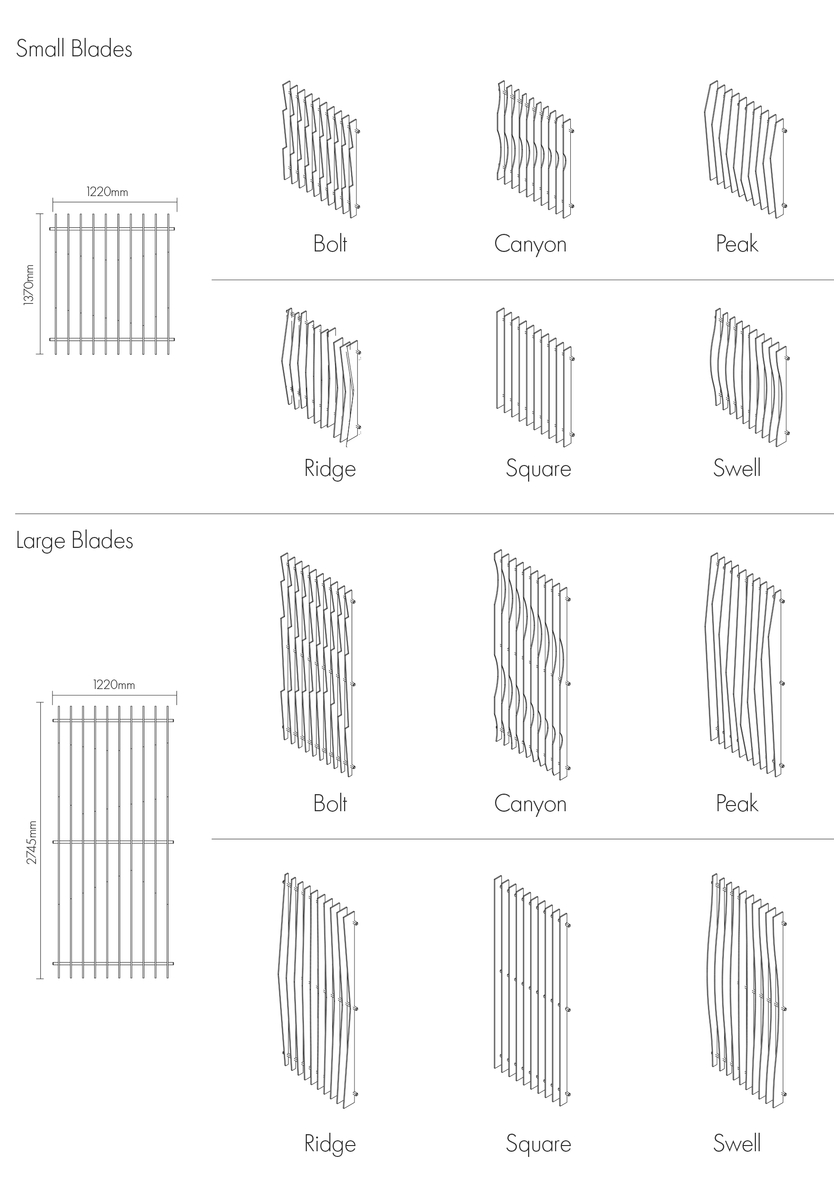

• PANEL SIZE / THICKNESS   2745mm x 1220 / thickness 12mm  or 1370mm x 1220mm / thickness 12mm

• ​SURFACE FINISH   Matte

• WEIGHT   2.4kg

• FIRE RATING   Euroclass B-s2-d0

• COLOURS  30 standard plain colours and 4 timber effects.  (NB Timber effects are digitally printed. Contact Tektura re options printing timber effect on front and back of blade,. The exposed edge is not printed)

• APPLICATION   Indoor areas only.

• FABRICATION   Utility knife or CNC with oscillating knife.

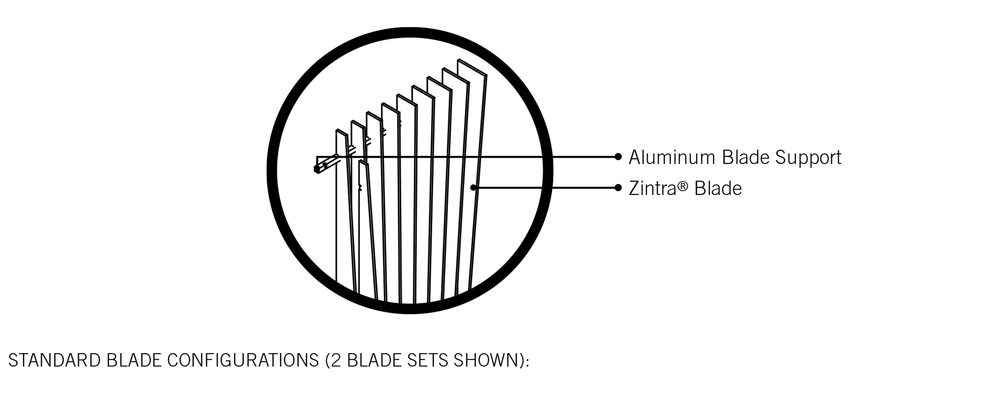

• INSTALLATION   Insert tube into pre-cut holes in the blades.  Move blades into correct position. Fix tube off to the wall with screws (not supplied).

• CARE   Vacuum.  Surfaces can be disinfected by spraying with diluted bleach solution. (4 teaspoons per 0.95 litres water).  Wipe off surface moisture.
